Support open-short circuit test and basic ICT test to ensure that FCT power-on test will not damage the tested product.
Programmable power board, control board, measurement card, IO card, communication card, data acquisition card, etc. can be freely deployed according to the test requirements.
High integration, supporting secondary development.
- Open-short circuit test
- R/C/L test.
- Voltage/current test.
- Support I2C/SPI communication.
- Output voltage -15~+15V.
- Output current 0~3A.
- The accuracy can reach 1%.
- Overcurrent protection.

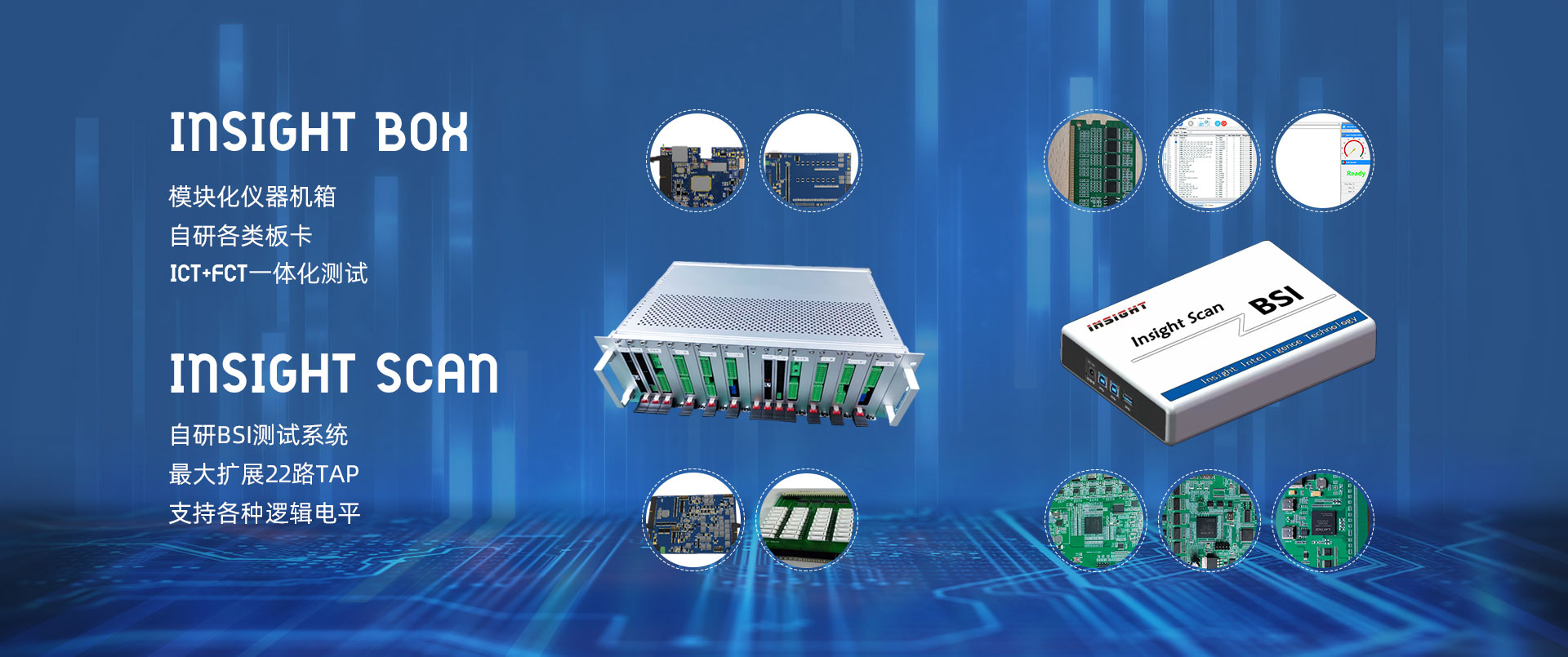

Self-developed BSI test system
Maximum expansion of 22-way
TAPSupport various logic levels
Support PC test and console test.
Various ways to connect PC communication
Comes with 6 independent JTAG interfaces.
2-way TAP expansion interface
8-channel controllable IO
Real-time temperature monitoring
Support multiple logic levels
Test project management
Single test and debugging
Set test parameters
View PIN test details
View test coverage
View hardware connections
Control PIN manual setting
Manual measurement of key voltage
Test real-time information display
Support command line operation
Teradyne program development
Keysight program development
TR8001 program development
Localization debugging and after-sales service
Provide multiple platforms for software development.
Labview/TestStand
C#/C++
Python
Product introduction
Test software development platform
Functions: including ICT, FCT, BSI, machine vision chip test library 10000+ function test library 1000+
Software system: self-developed software development platform
Application: Support customized development.
Product application:
It is used in the fields of servers, automobiles and chips to provide customized software development services for customers.
Visual positioning
Visual dimension measurement
Surface scratch detection
Screen content detection
Product entrance safety grating
Anti-collision switch for product return plate
Position induction switch for plate inlet and outlet
Product placement leveling induction switch
CPU module-oriented automatic pressing down
Abnormal pressure alarm and automatic reset.
DIMM module automatically presses down.
Sensing real-time position with early warning option.
Side insertion position sensing
Two 13.5V/125A fixed power supplies
Provide 200 load modules
Realize the continuous adjustment from normal temperature to 150℃.
Quick docking function
The aging time can be set arbitrarily between 0 and 0-99.99H h.
Online/offline
Short-line mode to reduce signal attenuation
Standardized definition of port connections
Safety protection of products to be tested
Ergonomic protection of operators
Standardizing MES system docking
Standardize standard test software
Founded in 2011, Yingsai Chuangzhi & Qunsheng Technology focuses on the research and development and manufacturing of electronic product testing equipment, and provides testing and intelligent manufacturing solutions for automobile, server, chip and other industries. After years of development, the company has set up manufacturing bases in Chengdu, Shenzhen, Kunshan and Chongqing with Shenzhen R&D Department as the core, responding to customers' needs quickly.
